Graphics Processor:

• GPU Name: NVIDIA GeForce RTX 5080
• Architecture: Ada Lovelace
• Process Technology: 5 nm
• CUDA Cores: 10,752

Clock Speeds:

• Base Clock: 2,220 MHz
• Boost Clock: Up to 2,640 MHz (overclocked mode)
• Memory Clock: 21 Gbps (effective)

Memory:

• Size: 16 GB
• Type: GDDR7
• Memory Bus: 256-bit
• Memory Bandwidth: 672 GB/s

Interface and Compatibility:

• Bus Standard: PCI Express 5.0 x16

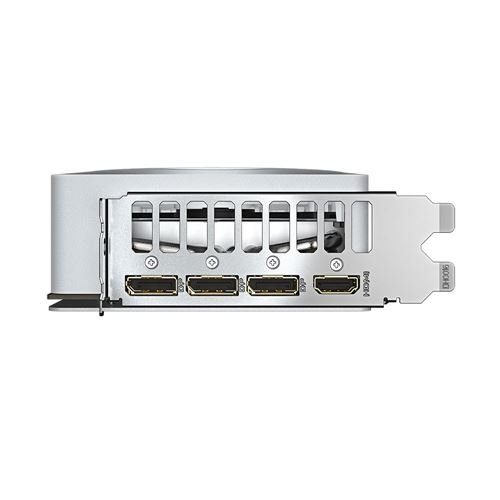

• Display Outputs: 3x DisplayPort 2.1, 1x HDMI 2.1
• OpenGL Support: OpenGL 4.6

Cooling and Design Features:

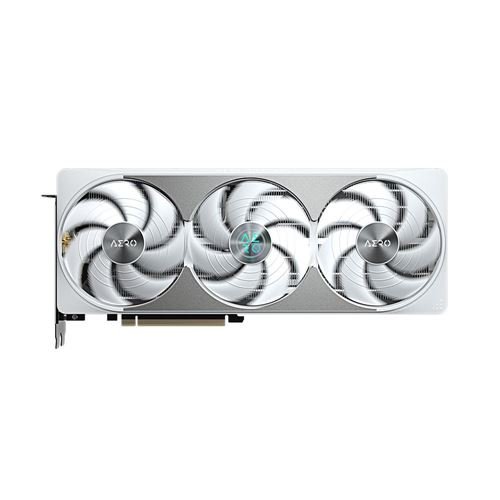

• Cooling Solution: AERO SFF Triple-Fan design for efficient heat dissipation in a compact form factor
• Slot Occupancy: 2.5-slot design (designed for small form factor (SFF) cases)
• Thermal Design Power (TDP): Approximately 350W

Power Delivery:

• Power Connectors: 2x 8-pin PCIe power connectors
• Power Consumption: Approximately 350W (under load)

Additional Features:

• Ray Tracing Cores: 3rd generation for real-time ray tracing
• Tensor Cores: 4th generation for AI-driven tasks
• DLSS Support: Yes (Deep Learning Super Sampling for enhanced performance)
• Overclocking: Factory overclocked for enhanced performance

The Gigabyte GeForce RTX 5080 AERO SFF is designed for users who need powerful graphics performance in a compact form factor, making it ideal for small form factor builds or systems with limited space while still offering high-end gaming and professional performance.
